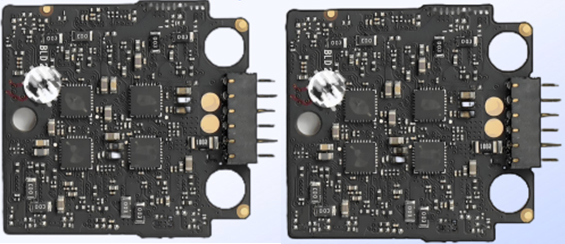

Protection Board Model: BMS-PB5100-UAV

• Employs PB5100 analog front-end chip to manage the battery.

• Collects total voltage, current, and temperature data from the 4S4P UAV battery pack.

• Provides overvoltage, overcurrent, overtemperature, and overvoltage protection data; supports 10-cell battery applications.

Solution Features

• Supports xxA continuous discharge.

• Intelligent balancing system.

• Multiple sleep and wake-up modes.

• Low power consumption.

• Over-temperature/low-temperature protection.

• Supports overvoltage/undervoltage/overcharge/over-discharge/short circuit protection functions.

• Adjustable battery protection parameters.

• SOC estimation, SOH estimation.

• Multi-channel battery temperature detection.
